Mini UHF

SPECIFICATIONS P/N GUIDE RF Cable Guide
P/N GUIDE Close
P/N GUIDE
P/N GUIDE Close
RF COAXIAL CABLES
 Reference Table
TYPE NO.
CENTER CONDUCTOR
DIELECTRIC O.D.MAX
OVER ALL JACKET O.D.MAX
NOMINAL
MAX OPER
IMPEDANCE
Voltage Vms
NO./Inch
NO./mm
Inch
Mm
Inch
mm
OHM
 　
RG-6/U
1/0.0285"
1/0.724
0.185"
4.699
0.332"
8.433
75
2700
RG-6A/U
1/0.0285"
1/0.724
0.185"
4.699
0.332"
8.433
75
2700
RG-8/U
7/0.0285"
7/0.724
0.285"
7.239
0.405"
10.287
50
4000
RG-8A/U
7/0.0285"
7/0.724
0.285"
7.239
0.405"
10.287
50
5000
RG-9/U
7/0.0285"
7/0.724
0.280"
7.112
0.420"
10.668
50
4000
RG-9A/U
7/0.0285"
7/0.724
0.280"
7.112
0.420"
10.668
50
4000
RG-9B/U
7/0.0285"
7/0.724
0.280"
7.112
0.420"
10.668
50
5000
RG-11/U
7/0.0159"
7/0.404
0.285"
7.239
0.405"
10.287
75
4000
RG-11A/U
7/0.0159"
7/0.404
0.285"
7.239
0.405"
10.287
75
5000
RG-58/U
1/0.0320"
1/0.813
0.116"
2.946
0.195"
4.953
50
1900
RG-58A/U
19/0.0071"
19/0.18
0.116"
2.946
0.195"
4.953
50
1900
RG-58C/U
19/0.0071"
19/0.18
0.116"
2.946
0.195"
4.953
50
1900
RG-59/U
1/0.0253"
1/0.643
0.146"
3.708
0.242"
6.147
75
2300
RG-59A/U
1/0.0253"
1/0.643
0.146"
3.708
0.242"
6.147
75
2300
RG-59B/U
1/0.0230"
1/0.584
0.146"
3.708
0.242"
6.147
75
2300
RG-62/U
1/0.0253"
1/0.643
0.146"
3.708
0.242"
6.147
93
750
RG-62A/U
1/0.0253"
1/0.643
0.146"
3.708
0.242"
6.147
93
750
RG-62B/U
7/0.0080"
7/0.203
0.146"
3.708
0.242"
6.147
93
750
RG-141/U
1/0.0359"
1/0.912
0.116"
2.946
0.190"
4.826
50
1900
RG-141A/U
1/0.0390"
1/0.991
0.116"
2.946
0.190"
4.826
50
1900
RG-142/U
1/0.0359"
1/0.912
0.116"
2.946
0.206"
5.232
50
1900
RG-142A/U
1/0.0390"
1/0.991
0.116"
2.946
0.206"
5.232
50
1900
RG-142B/U
1/0.0390"
1/0.991
0.116"
2.946
0.195"
4.953
50
1900
RG-174/U
7/0.0063"
7/0.160
0.060"
1.52
0.100"
2.667
50
1500
RG-174A/U
7/0.0063"
7/0.160
0.060"
1.52
0.100"
2.667
50
1500
RG-178/U
7/0.0040"
7/0.102
0.036"
0.914
0.079"
2.000
50
1000
RG-178A/U
7/0.0040"
7/0.102
0.034"
0.864
0.075"
1.905
50
1000
RG-178B/U
7/0.0040"
7/0.102
0.034"
0.864
0.075"
1.905
50
1000
RG-179/U
7/0.0040"
7/0.102
0.057"
1.448
0.094"
2.388
75
1200
RG-179A/U
7/0.0040"
7/0.102
0.063"
1.600
0.105"
2.667
75
1200
RG-179B/U
7/0.0040"
7/0.102
0.063"
1.600
0.100"
2.540
75
1200
RG-187/U
7/0.0040"
7/0.102
0.060"
1.600
0.110"
2.794
75
1200
RG-187A/U
7/0.0040"
7/0.102
0.060"
1.524
0.110"
2.794
75
1200
RG-188/U
7/0.0067"
7/0.170
0.060"
1.524
0.110"
2.794
50
1200
RG-188A/U
7/0.0067"
7/0.170
0.060"
1.524
0.110"
2.794
50
1200
RG-196/U
7/0.0004"
7/0.010
0.034"
0.864
0.080"
2.032
50
1000
RG-196A/U
7/0.0004"
7/0.010
0.034"
0.864
0.080"
2.032
50
1000
RG-210/U
1/0.0253"
1/0.643
0.146"
3.708
0.242"
6.147
93
750
RG-213/U
7/0.0296"
7/0.752
0.285"
7.239
0.405"
10.287
50
5000
RG-214/U
7/0.0296"
7/0.752
0.285"
7.239
0.425"
10.795
50
5000
RG-223/U
1/0.0350"
1/0.889
0.116"
2.946
0.216"
5.486
50
1900
RG-316/U
7/0.0067"
7/0.170
0.060"
1.524
0.102"
2.591
50
1200
RG-400/U
19/0.0077"
19/0.0484
0.116"
2.946
0.195"
4.953
50
1900



RF COAXIAL CABLES
Reference Table

TYPE NO.
Inner Conductor
PE Dielectric
Pvc Mckel Overall
Characteristic
Annealed Copper
Diameter
Core Diameter
Diameter
Impeedance
Detals
(10MHZ)
1.5C-2V
1/0.26
0.26
1.6
2.9
75 OHM±3
2.5C-2V
1/0.4
0.4
2.4
4.0
75 OHM±3
3C-2V
1/.05
0.5
3.1
5.4
75 OHM±3
5C-2V
1/0.8
0.8
4.9
7.4
75 OHM±3
5C-2W
1/0.8
0.8
4.9
8.3
75 OHM±3
7C-2V
7/0.4
1.2
7.3
10.4
75 OHM±3
10C-2V
7/0.5
1.5
9.4
13.0
75 OHM±3
10C-2W
7/0.5
1.5
9.2
14.2
75 OHM±3
20C-2V
1/2.9
2.9
19.0
24.1
75 OHM±3
3D-2V
7/0.32
0.96
3.0
5.3
50 OHM±2
8D-2V
7/0.8
2.4
7.8
11.1
50 OHM±2
10D-2V
1/2.9
2.9
9.7
13.1
50 OHM±2
BT2002
7/0.2
2.4
5.1
75 OHM
BT2003
0.61
3.7
6.7
75 OHM
BT3002
0.31
2.0
3.6
75 OHM
TZC-RA750
0.31
2.0
3.6
75 OHM

Mini UHF Plug to BNC Socket

Mini UHF Plug to BNC SocketClose
Mini UHF Plug to BNC Socket
P/N Optional cable group Impedance
LA-57X52-02 N/A -
- -
- -
- -
- -

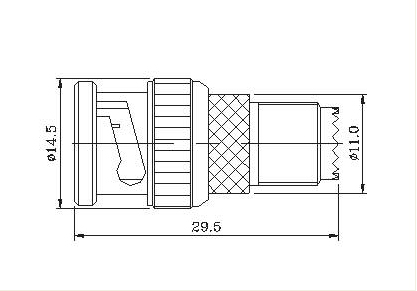

Mini UHF Socket to BNC Plug

Mini UHF Socket to BNC PlugClose
Mini UHF Socket to BNC Plug
P/N Optional cable group Impedance
LA-57X52-04 N/A -
- -
- -
- -
- -

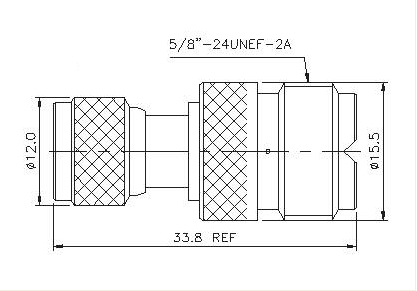

Mini UHF Plug to UHF Socket

Mini UHF Plug to UHF SocketClose
Mini UHF Plug to UHF Socket
P/N Optional cable group Impedance
LA-57X55-03 N/A -
- -
- -
- -
- -

Mini UHF Socket to Mini UHF Socket

Mini UHF Socket to Mini UHF SocketClose
Mini UHF Socket to Mini UHF Socket
P/N Optional cable group Impedance
LA-57X57-01 N/A -
- -
- -
- -
- -
