N Series

Specifications

Material:

Parts Name

Material

Finish

Body, Metal Parts

Brass per QQ-B-626

Nickel or Silver per requirement

Center Contacts

Plug: Brass per QQ-B-626

Gold or Silver per requirement

Jack: Beryllium copper per

QQ-C-530 or Phosphor Bronze

per QQ-B-750 or Brass per QQ-B-626

Gold or Silver per requirement

Insulators

Teflon, Delrin

None

Crimp Ferrules

Annealed copper

Nickel or Silver per requirement

Clamp Gaskets

Silicone rubber, Synthetic rubber

None

Electrical:

Impedance

50 ohm

FrequencyRange

0 - 11 GHz

Working Voltage

1000 VRMS max.

Dielectric Withstanding Voltage

2500 VRMS min.

VSWR

Straight

1.3 max

Right Angle

1.5 max

Contact Resistance

Center Contact

3 Milliohms Max.

Outer Contact

2 Milliohms Max.

Insulator Resistance

5000 Megohms min.


Mechanical & Environmental:

Engagement Force

6 in-lbs. max.

Disengagement Force

6 in-lbs. max.

Coupling Nut Retention

100 lbs. min.

Coupling Proof Torque

30 in-lbs. min.

Contact Retention

6 lbs. min.

Durability(Mating)

500 cycles min.(for Beryllium copper Jack contact only)

TemperatureRange

-65C to 165C

Vibration

MIL-STD-202 Method 204 Test Cond.B.

Salt Spray

MIL-STD-202 Method 101 Test Cond.B.

Thermal Shock

MIL-STD-202 Method 107 Test Cond.B.

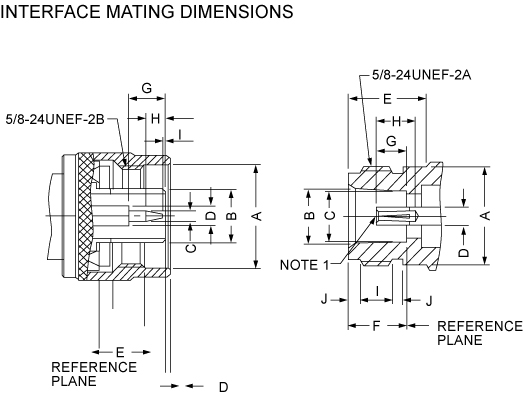

PLUG

Letter

Millimeters

Minimum

Maximum

A

16.00

-

B

-

8.38

C

1.60

1.68

D

3.00

3.15

E

0.41

1.52

F

10.11

10.46

G

5.33

5.84

H

3.30

4.32

I

0.08

-

J

4.01

4.27

K

4.50

5.00

SOCKET

Letter

Millimeters

Minimum

Maximum

A

-

15.93

B

8.53

8.74

C

8.03

8.13

D

3.00

3.15

E

10.72

-

F

9.04

9.19

G

4.75

5.26

H

5.33

-

I

4.37

5.13

J

1.19

1.96
