MCX Series

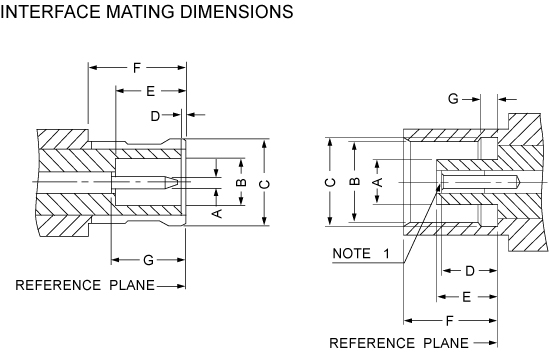

Specifications
Material:
|
Parts Name |
Material |
Finish |
|
Body, Metal Parts |
Brass per QQ-B-626 |
Nickel or Gold per requirement |
|
Center Contacts |
Plug: Brass per QQ-B-626 |
Gold |
|
Jack: Beryllium copper per QQ-C-530 |
Gold | |
|
Insulators |
Teflon |
None |
|
Outer Contact of male |
Beryllium copper per QQ-C-530 |
Gold |
|
Crimp Ferrules |
Annealed copper |
Nickel or Gold per requirement |
Electrical:
|
Impedance |
50 ohm | ||
|
FrequencyRange |
0 - 6 GHz | ||
|
Working Voltage |
335 VRMS max. | ||
|
Dielectric Withstanding Voltage |
1000 VRMS min. | ||
|
VSWR |
Straight |
1.3 max | |
|
Right Angle |
1.5 max | ||
|
Contact Resistance |
Center Contact |
5 Milliohms Max. | |
|
Outer Contact |
2.5 Milliohms Max. | ||
|
Insulator Resistance |
1000 Megohms min. | ||
Mechanical & Environmental:
|
Engagement Force |
3.4 lbs. max. |
|
Disengagement Force |
4.5 lbs. max. |
|
Contact Retention |
4 lbs. min. |
|
Durability(Mating) |
500 cycles min.(for Beryllium copper jack contact only) |
|
TemperatureRange |
-65¡ÆC thru 155¡ÆC |
|
Vibration |
3 cycles, 3 opposite directions, 10-150 Hz, 10-60 Hz: 0.75mm/.030 in., 60-150Hz 10G¡¯s |
|
Temperature Shock |
MIL-STD-202 Method 107 |
|
Humidity |
MIL-STD-202 Method 103, Condition B. |
|
Mechanical Shock |
MIL-STD-202 Method 213, Condition B. |
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
