MMCX
Series
Specifications
Material:
|
Parts
Name
|
Material
|
Finish
|
Body,
Metal Parts
|
Brass
per QQ-B-626 |
Nickel
or Gold per requirement
|
Center
Contacts
|
Plug:
Brass per QQ-B-626
|
Gold
|
Jack:
Beryllium copper per
QQ-C-530
|
Gold
|
Insulators
|
Teflon
|
None
|
Crimp
Ferrules
|
Annealed
copper
|
Nickel
or Gold per requirement
| |
Electrical:
|
Impedance
|
50ohm
|
FrequencyRange
|
0
- 6 GHz |
Working
Voltage
|
170
VRMS max.
|
Dielectric
Withstanding Voltage
|
500
VRMS min.
|
VSWR
|
Straight
|
1.3
max
|
Right
Angle
|
1.5
max
|
Contact
Resistance
|
Center
Contact
|
5
Milliohms Max.
|
Outer
Contact
|
2.5
Milliohms Max.
|
Insulator
Resistance
|
1000
Megohmsmin.
| |
Mechanical
& Environmental: |
Engagement
Force
|
3.4
lbs. max. |
Disengagement
Force
|
1.4
lbs.- 3.4 lbs.
|
Contact
Retention
|
2.3
lbs. min.
|
Durability(Mating)
|
500
cycles min.(for Beryllium copper jack contact only)
|
TemperatureRange
|
-65¡ÆC
to 155¡ÆC
|
Vibration
|
3
cycles, 3 opposite directions,
10-150
Hz, 10-60 Hz:
0.75mm/.030
in., 60-150Hz 10G¡¯s
|
Temperature
Shock
|
MIL-STD-202
Method 107
|
Humidity
|
MIL-STD-202
Method 103, Condition B.
|
Mechanical
Shock
|
MIL-STD-202
Method 213, Condition B.
| |
|
|
|

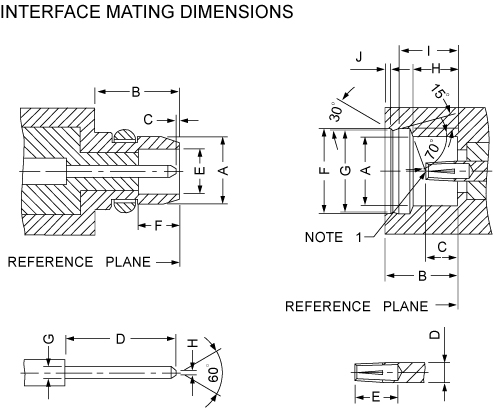

PLUG
|
Letter
|
Millimeters
|
Minimum
|
Maximum
|
A
|
-
|
2.40
|
B
|
2.70
|
-
|
C
|
0.00
|
0.25
|
D
|
-
|
3.15
|
E
|
1.58
|
1.62
|
F
|
1.45
|
-
|
G
|
0.38
|
0.42
|
H
|
-
|
0.20
| |
SOCKET
|
Letter
|
Millimeters
|
Minimum
|
Maximum
|
A
|
2.41
|
-
|
B
|
2.60
|
-
|
C
|
0.90
|
1.20
|
D
|
0.68
|
0.72
|
E
|
1.40
|
-
|
F
|
3.00
|
3.04
|
G
|
2.87
|
2.90
|
H
|
1.57
|
1.63
|
I
|
2.30
|
2.34
|
J
|
-
|
0.23
| | |
